LDO Voron SwitchWire Kit RevC

https://www.desktopmachineshop.com/web/image/product.template/19/image_1920?unique=d426318
(0 review)

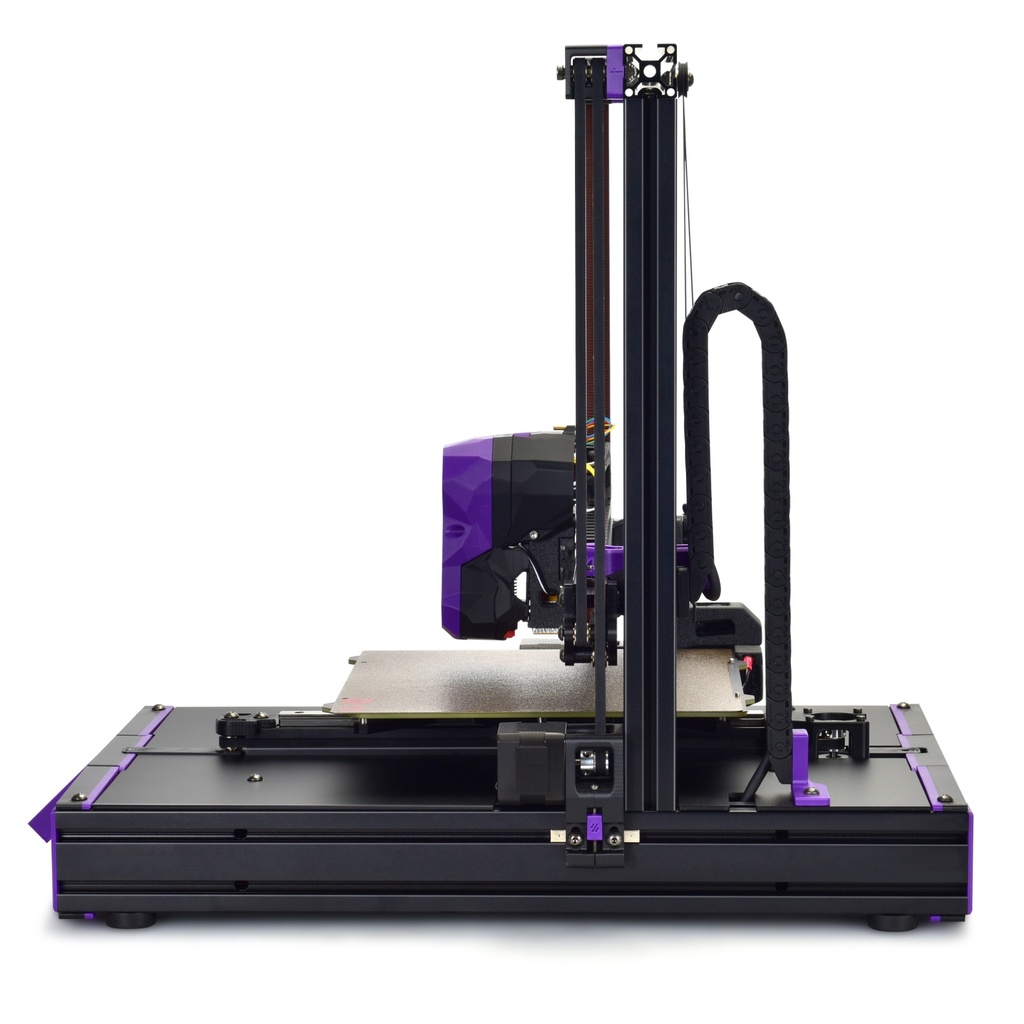

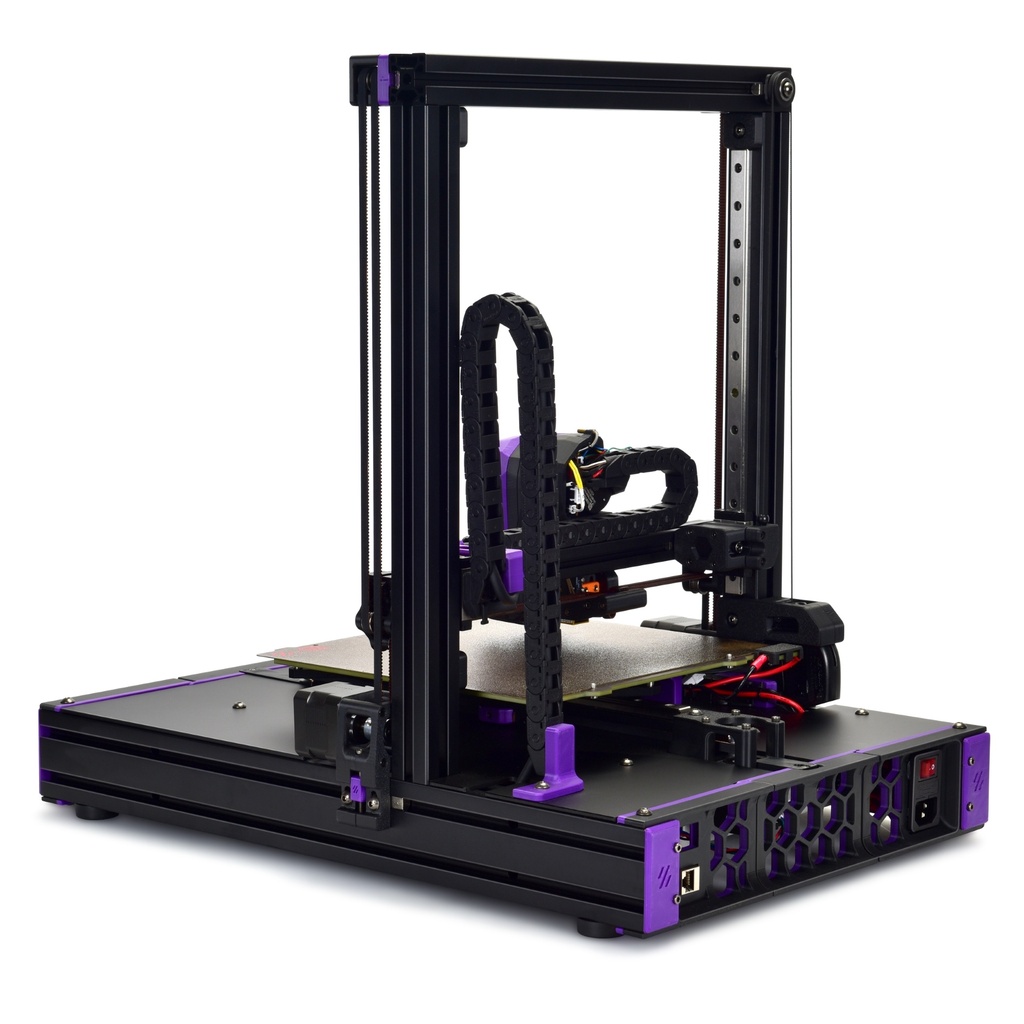

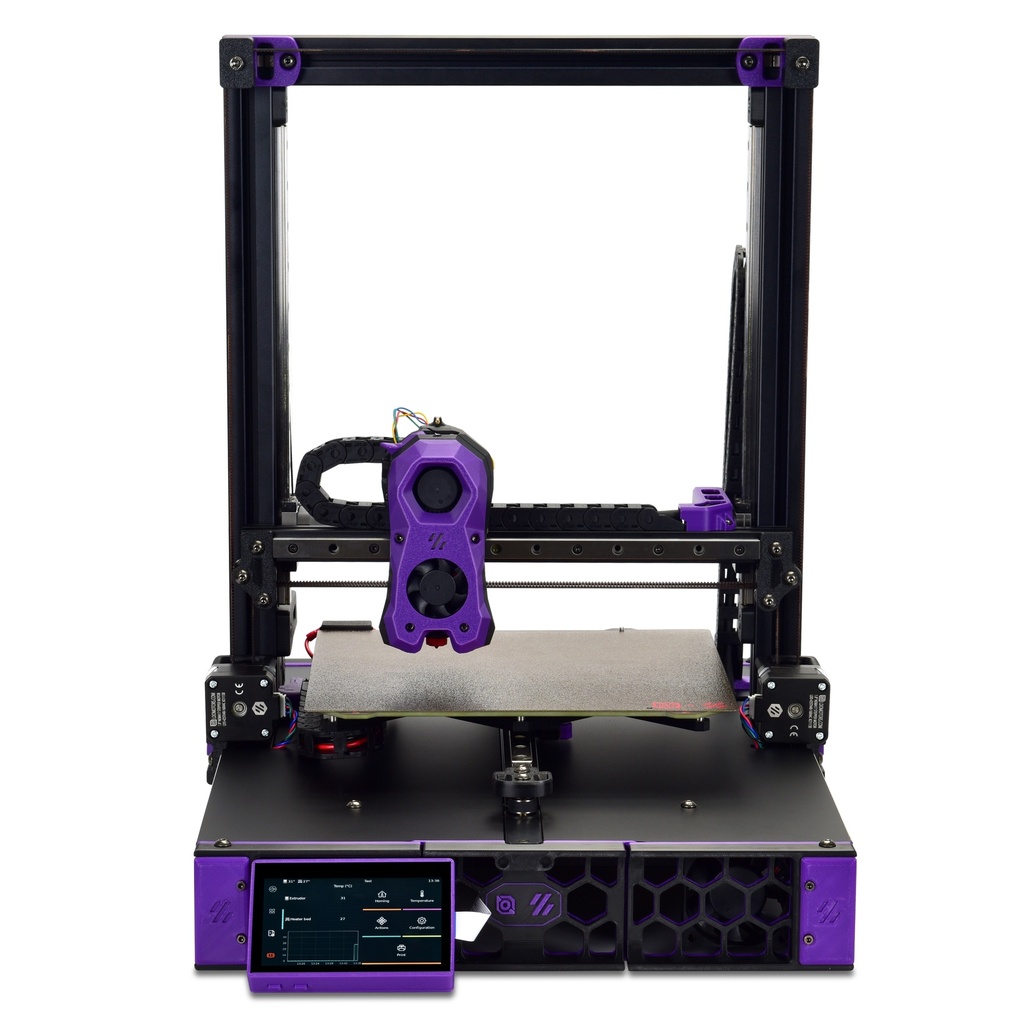

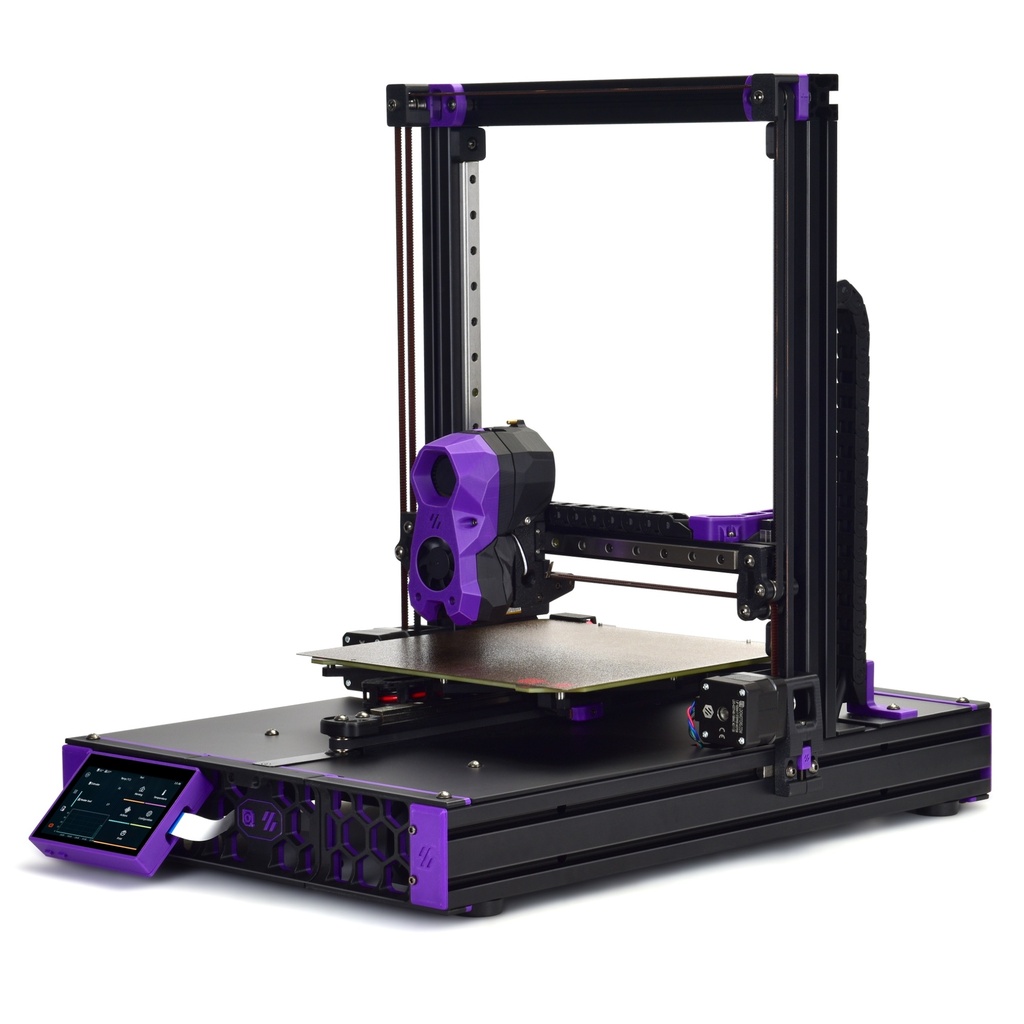

The Switchwire is a Voron take on a classic Mendel (aka “bedslinger”) design. It is a CoreXZ design so the print head is belt driven in both the X and Z axis eliminating the typical leadscrew Z drive allowing for very fast Z movement speeds and less weight on the gantry by moving the X motor to the frame. The stiff 3030/3060 constructed frame is just large enough to cover the entire swing of the Prusa 250x210mm bed and allows for a natural enclosure.

Kit contents:

Everything in the Voron BOM plus:

  • Stainless Steel Linear Rails - That's right, no more worrying about rusty rails. Remember to properly lubricate your linear rails!

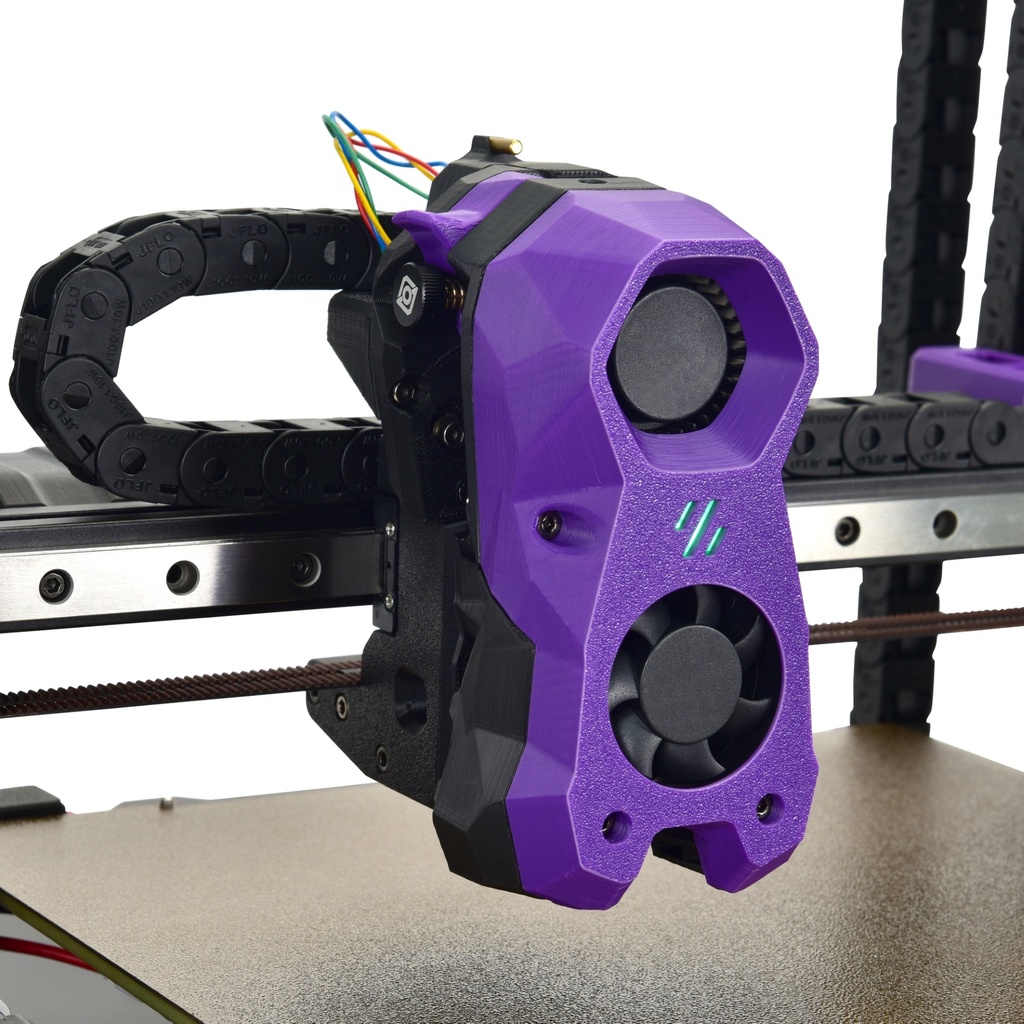

  • Nitehawk Toolboard (New in Rev. C) - Our Rev C. kit includes the Nitehawk Toolboard - a smart toolhead PCB solution that greatly simplifies wiring and maintainence.
  • Brass Heatset Insert Tool - We've included a custom machined brass tip for your soldering iron, use it to install heatset inserts with ease! Check here for more information.
  • Input Shaper Tool- We thew in a toolkit that includes all the necessary parts to help you perform input shaper calibration, hassle free.
  • Pre-cut & Pre-wired - Our kit includes all necessary wiring: cut to just the right length and pre-crimped or soldered to their respective parts. See our supplementary wiring guide here.
  • Small Tools - We include a small set of hex wrenches for all the fasteners used in the build (including a bunch of 1.5mm hex wrenches which wear out easily). However, you should definitely still buy a set of good quality hex wrenches. Also included is a small flat head screw driver that is useful in a surprising numerous situations.

What you need t​o source:

  • Printed parts

Useful Lin​ks:
